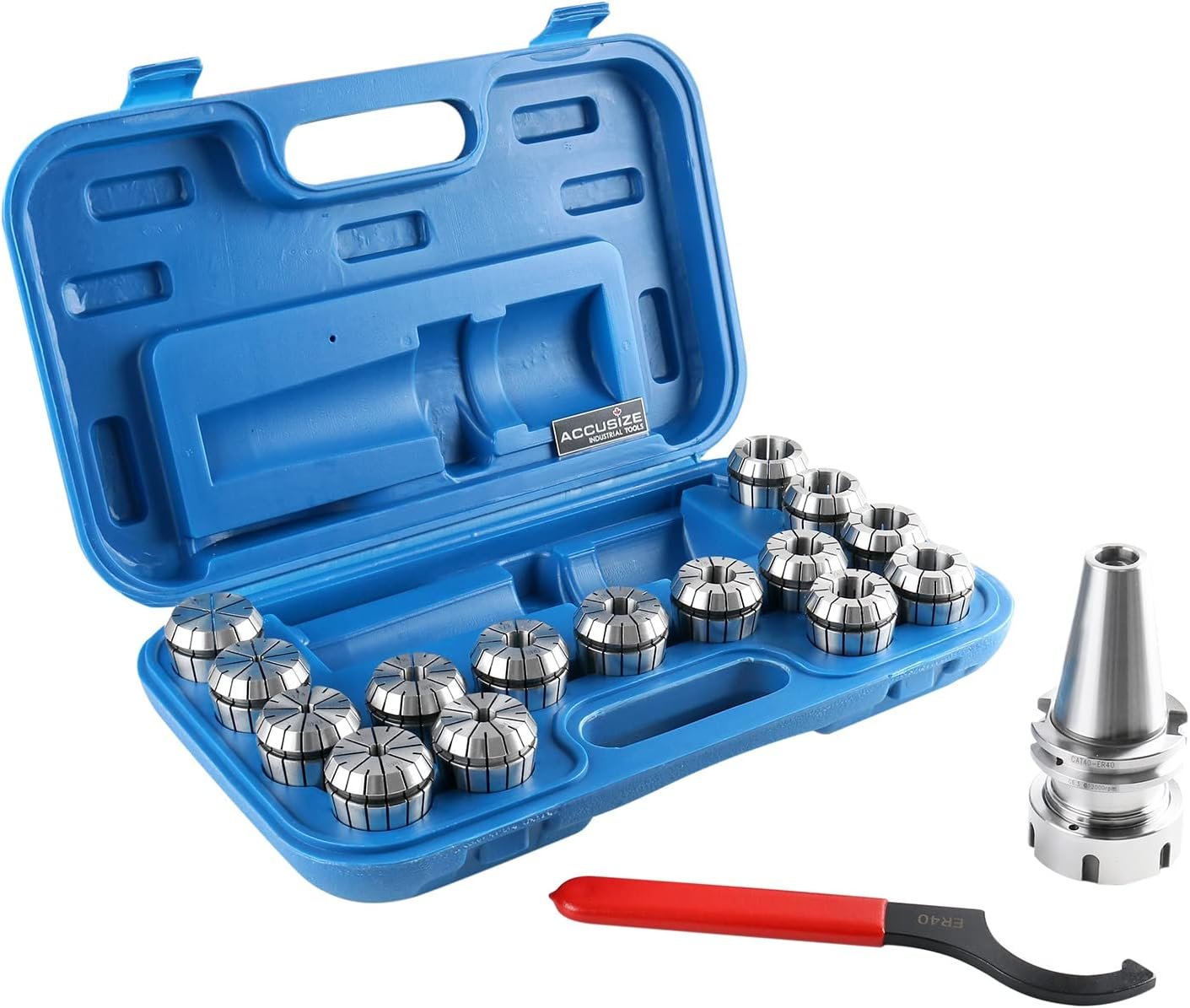

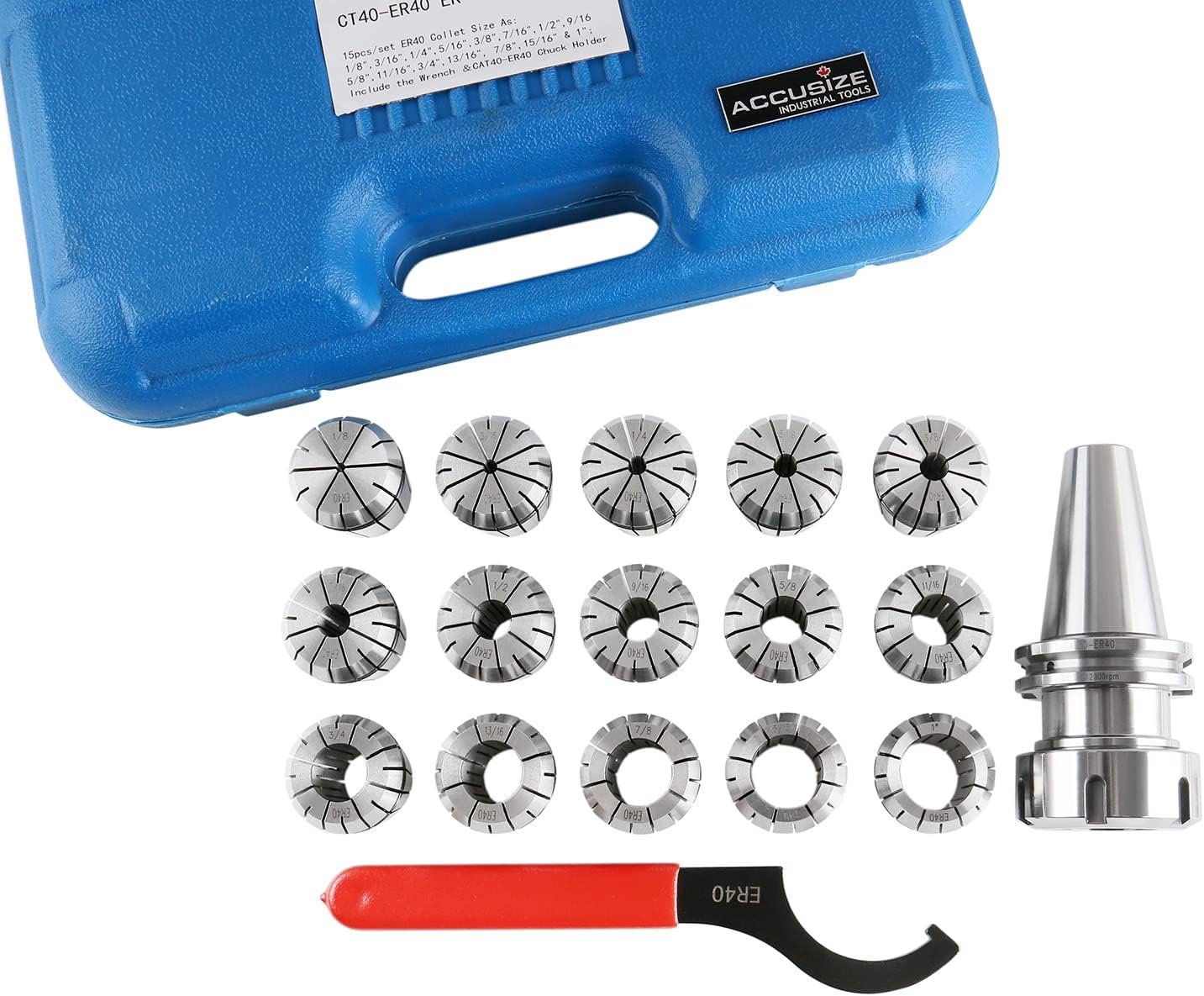

Accusize Industrial Tools Cat40 Shank and 15 Pc Er40 Collet Set with Wrench in Fitted Strong Box, 1/8 to 1 inch, Ct40-Er40

Price: $234.58 - $337.00
(as of Feb 18, 2026 20:35:39 UTC – Details)

Product Description

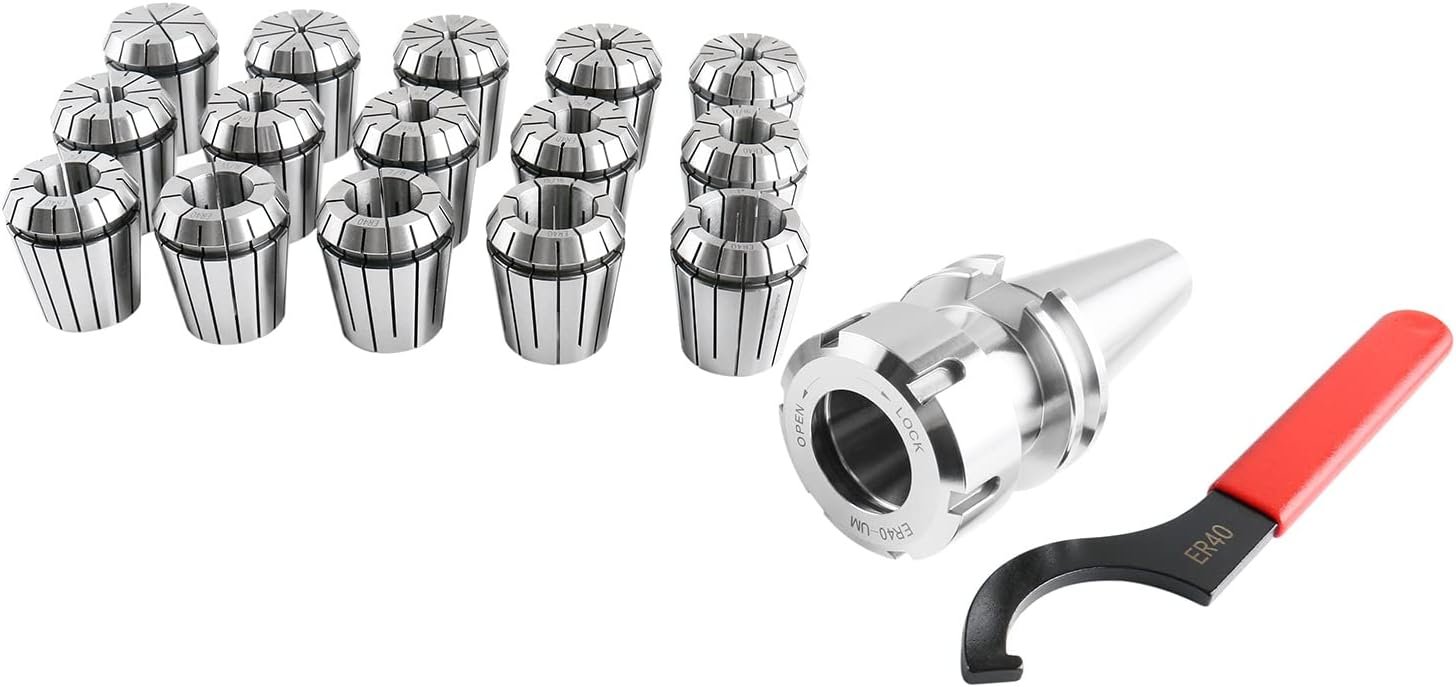

CAT40-ER40 V-Flange Holder w/ 15 Collets & Wrench

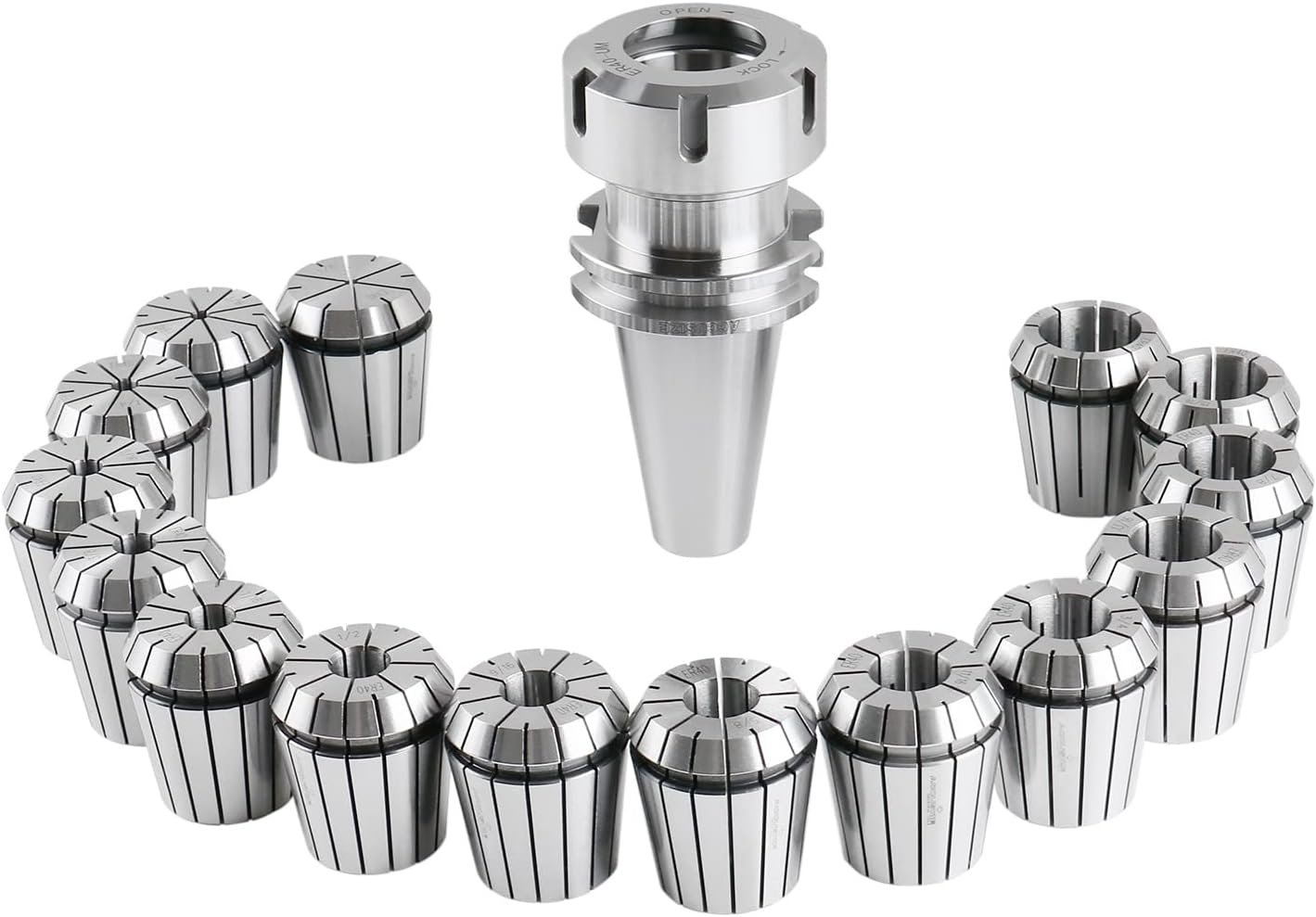

This set includes one CAT40-ER40 V-Flange Collet Holder, 15 ER40 Collets, and 1 ER40 Wrench.

Project Len.: 3.15″/80mm

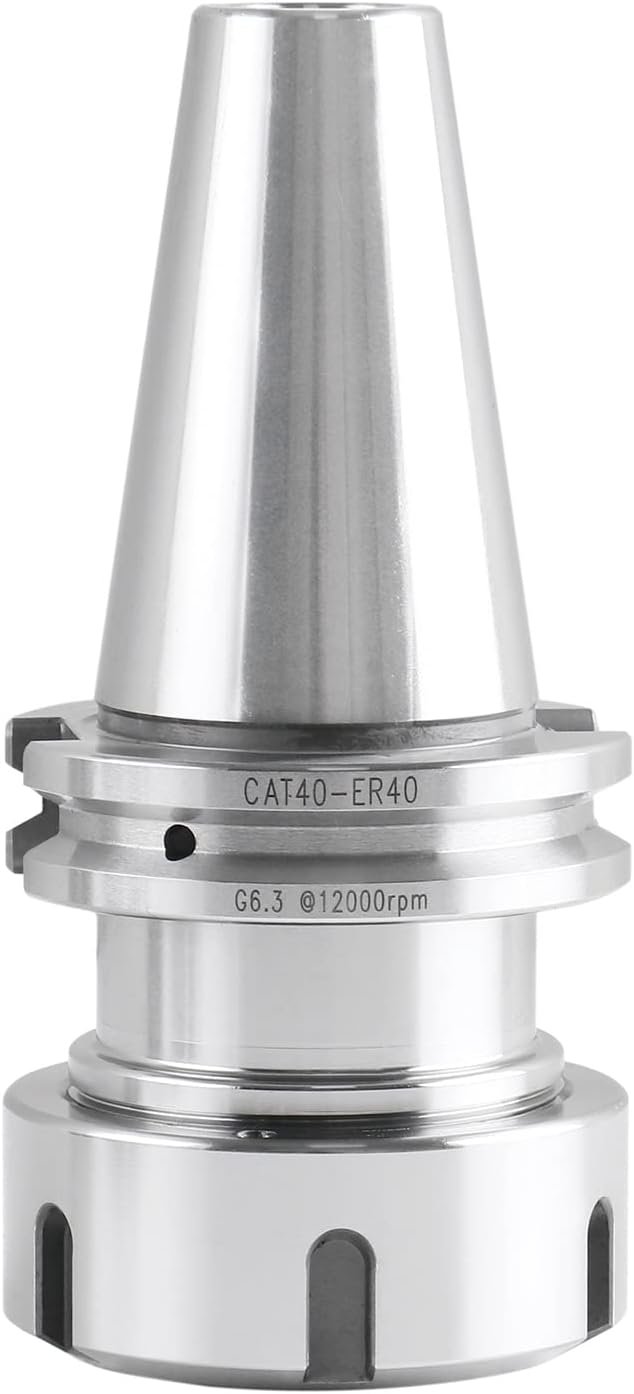

CAT40 to ER40 V-Flange Collet Holder

Drawbar Thread: 5/8″-11Made of Alloy Forged SteelHardened to HRC 52-56

Alloy Forged Steel

Made from Alloy Forged Steel.

“Off-Centric” Design

Feature of ER Collet Nut

The Eccentric Ring complies with ISO 15488:2003(E) and secures ER collets.

0.0005″ accuracy

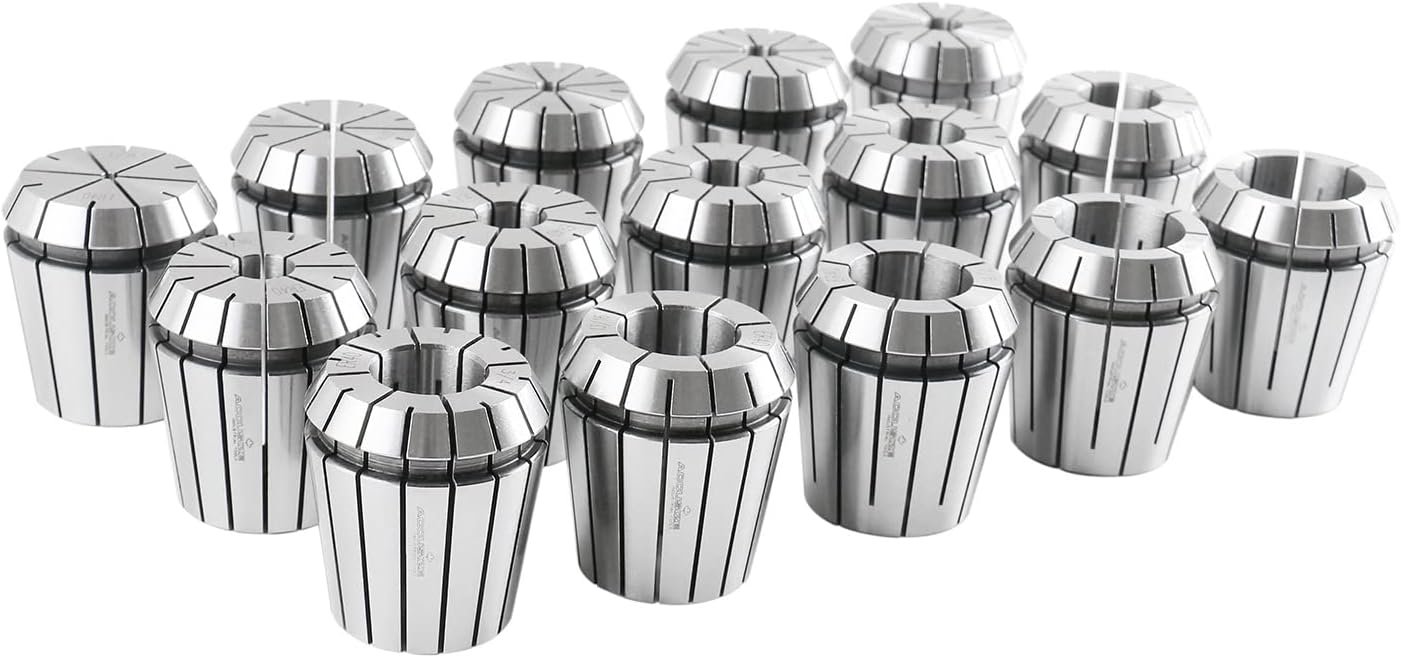

ER40 Collets & Wrench

15 Collets: 1/8-1″ x 16thsWith ER40 Wrench
1 Product Overview

2 Collet Holder Overview

3 Alloy Forged Steel

4 Eccentric Ring

5 Collets & Wrench Overview

Collet Holder & ER Collet Features Features CAT40 to ER40 V-Flange Collet Holder

Drawbar Thread: 5/8″-11Made of Alloy Forged SteelHardened to HRC 52-56 Features ER40 Collet

Made of Durable Alloy Spring Steel.Hardened to and precision ground.Accuracy: 0.0005″

V-Flange Collet Holder Schematic Diagram Specifications

Project Length: 3.15″/80mm, Taper: CAT40, Collet Series: ER40Collet Nut Diameter: 2.48″Drawbar Thread: 5/8″-11Range: 1/8″-1″ Accuracy Inspection Cautions

Clean All Parts: Dirt or improper installation affects precision.Check Spindle: Ensure your machine’s spindle is highly accurate.Use Quality Collets: Many marked 0.0005″ don’t meet the spec.Overall Accuracy Depends: Low collet accuracy limits test results.

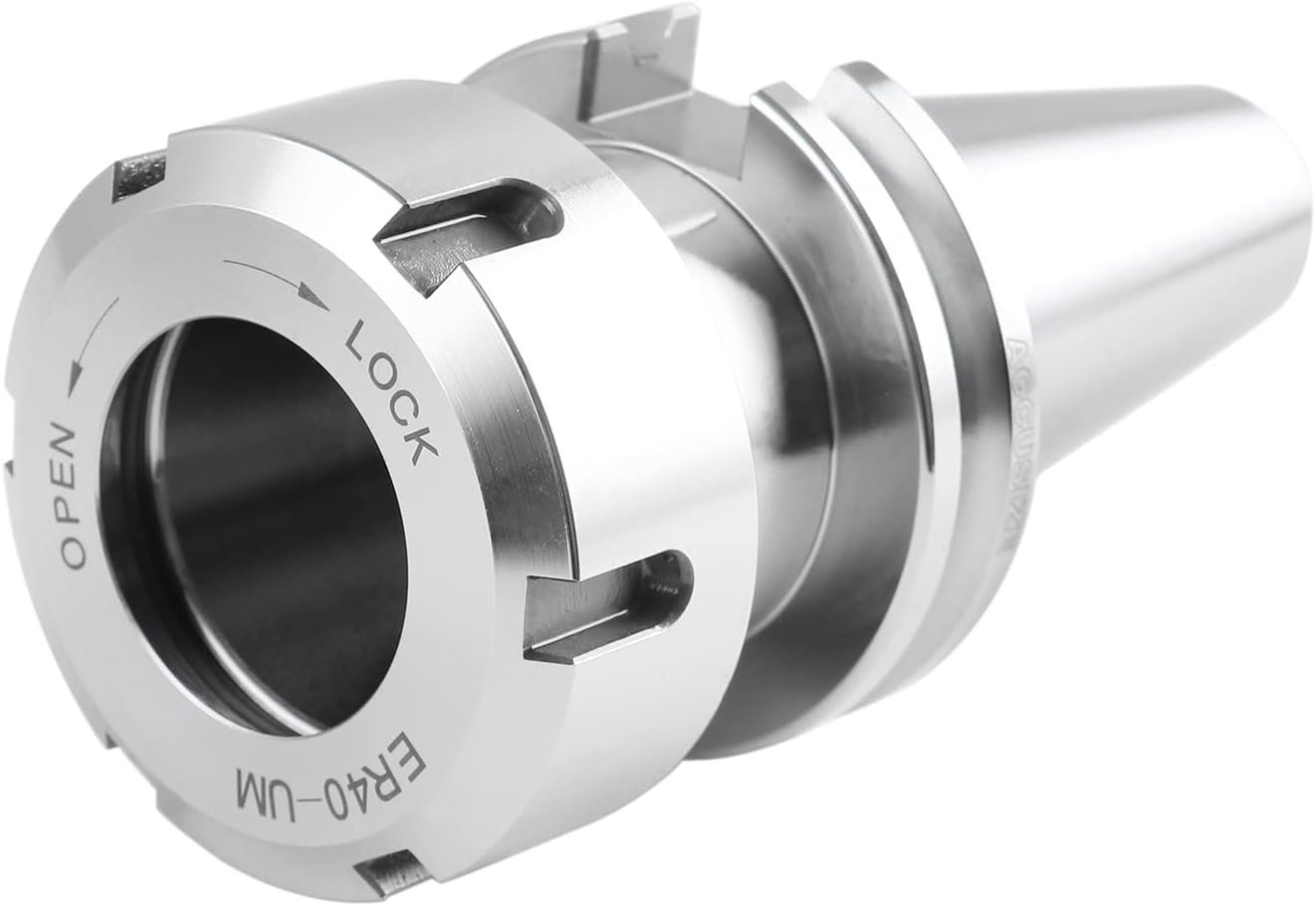

Attention: Eccentric Ring of the ER Collet Nut Collet Nut’s Eccentric Ring

The Eccentric Ring is designed per the requirements listed in ISO 15488:2003(E). It is to hold ER collets in place.

Assembly

Tilt and insert the collet partway into the nut.Engage the ring into the collet’s groove and press until fully seated. Assembled

Tighten the nut lightly with the collet holder.(Warning: never tighten the nut without a cutter in it as it will break) Disassembly

Take out the nut from the holder.Press the end of the ER collet until it disengages from its position.Push the collet out of the nut.

Auxiliary Tools and Replacement Parts
ER40 Collets

ER40 collets, hardened to HRC 44–48, feature 0.0005″ runout and a specially treated surface that enhances durability and extends tool life.

Accusize 3350-0586 Precision ER40 Collet Set, mm

23pcs/set4-26mm by 1mmStrong storage case

ER40 Collet Nut, Thread Tolerance Class: 4H

Collet clamping nut for CNC milling collet holder.Made from alloy steel hardened to HRC 50-52.Balanced to 20,000 RPM at G2.5, ER40-NUTTolerance: 0.0003″ maximum.

Wrench for ER40 Collet Nut

CAT40 Pull Stud

Manufactured from 20CrMnTi alloy steel, the pull studs undergo heat treatment and are hardened to HRC 58, providing exceptional strength, wear resistance, and durability.

CAT40 Horizontal and Vertical Tightening Fixture

Horizontal/vertical tightening fixture for CAT40 tool holders. Enables quick tool setup, strong grip, and easy mounting. Compact, durable, and weighs 3.8 kg.

Compare Accusize CAT40 to ER40 V-Flange Collet Holder

Add to Cart

Add to Cart

Add to Cart

Add to Cart

Customer Reviews

4.4 out of 5 stars 57

5.0 out of 5 stars 2

—

4.3 out of 5 stars 14

4.3 out of 5 stars 14

Price

$337.00$337.00

$126.00$126.00

—

$93.00$93.00

$93.00$93.00

SKU

CT40-ER40

2001-0035

2001-0040

1601-0035

1601-0040

Collet Holder Shank Type

3.15″

2.76″

4″

2.76″

4″

Collet Nut Style

Slotted

Slotted

Slotted

Slotted

Slotted

Number Of Collets

15

–

–

–

–

Clamping Range

1/8″-1″

1/8″-1″

1/8″-1″

1/8″-1″

1/8″-1″

Max. Balanced Speed (RPM)

12,000

20,000

20,000

8,000

8,000

Balancing Grade

G6.3

G2.5

G2.5

G6.3

G6.3

Comes with Wrench

✔

✘

✘

✘

✘

Comes with Collets

✔

✘

✘

✘

✘

Dynamic Balancing Grade G6.3/12000 RPM. For machining tools such as end mills, drill bits, reamers, etc.
Dynamic Balancing Grade G6.3/12000 RPM. For machining tools such as end mills, drill bits, reamers, etc.
Dynamic Balancing Grade G6.3/12000 RPM. For machining tools such as end mills, drill bits, reamers, etc.
15 Pcs ER40 chucks set includes the following collet sizes: 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4,13/16, 7/8, 15/16, 1″
1 Pc Spanner + 1 Pc Clamping Nut
CAT40-ER40-80mm Chuck Holder.
Accuracy to 0.0004″. Run-out Tolerance: 0.0004″.
